An AVR Microcontroller is a special device type produced by Atmel. But, what is a Microcontroller first, and how does it differ from other common chips?
A Microcontroller can be thought of as a single on-chip computer that includes all the peripherals—RAM, EEPROM, Timers, etc.—necessary to carry out a certain task.
Does this imply that a computer is another term for a Microcontroller? NO is the correct response!
The computer, on the other hand, is designed to carry out all fundamental tasks on a single device. For instance, running software to perform operations, keeping multimedia files, or using a search engine to access the internet. Whereas Microcontrollers are only designed to carry out specific tasks. For example, turning the AC back on when the room temperature rises above a set threshold.
In this article, we will discover what is Atmega32 Microcontroller in detail, and its features.
Let us study about Atmega32 Microcontroller in detail.

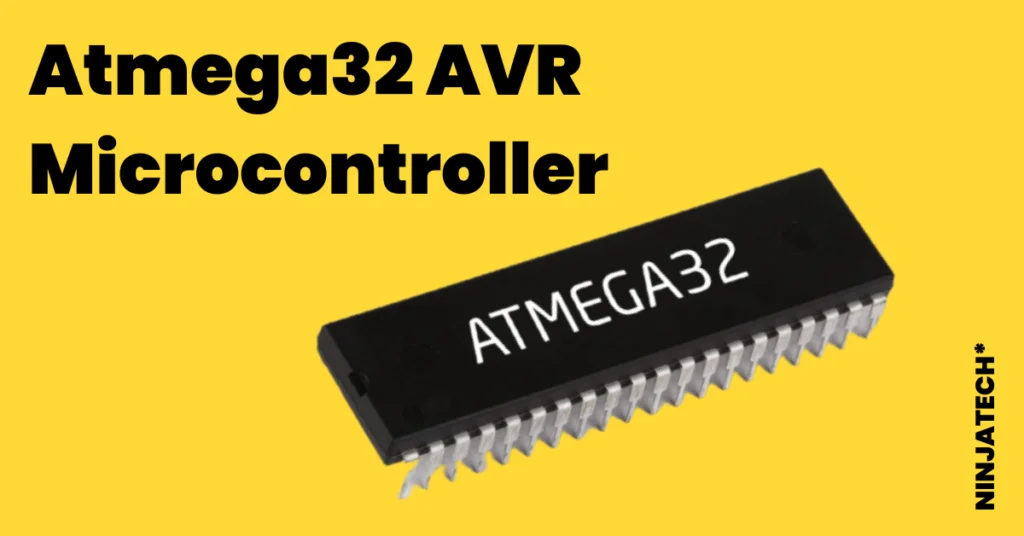

What is Atmega32 AVR Microcontroller?
Alf Vegard RISC. In brief, AVR for short, is a more advanced 8-bit and built-in Flash RISC order set created by ATMEL. Digital control is provided by the AVR Microprocessor for any type of electrical, automotive, or mechanical system, as well as for industrial facilities, various gadgets, and other electronic devices. These Microcontrollers are offered as 8, 16, and 32-bit integrated circuits. Therefore, the ATmega8, ATmega16, ATmega32, and ATmega328 Microcontrollers are the most widely utilized by these Microcontrollers.
What is the History of the AVR Microcontroller?
History
Atmel created the first AVR microprocessor in 1996. The American business Atmel was established in 1984. That focuses on the development, production, and marketing of embedded systems, including Microcontroller units. For embedded applications, the AVR architecture was created to be a low-cost, effective platform.
The Harvard design, which divides program memory from data memory, is the foundation of the Atmega32 Microcontroller. This considerably boosts performance by enabling it to carry out many instructions in parallel in a single cycle. Additionally, the AVR offers an optimized instruction set for C programming, which facilitates program development and debugging.
What are the Types of AVR Microcontrollers?
You learned the fundamentals of the atmega32 AVR Microcontroller and its history in the section above; now let’s look at several types of Microcontrollers.

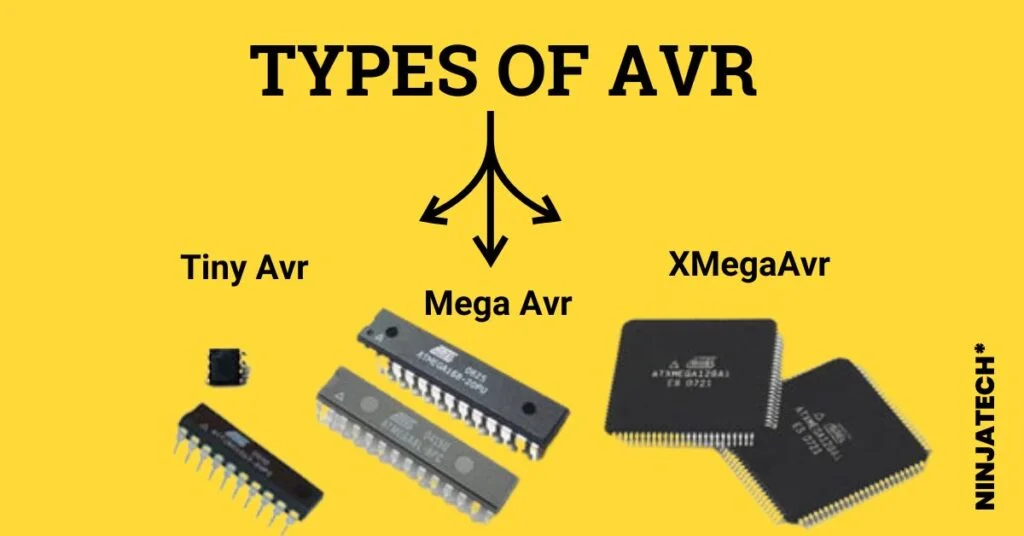

Types
Three types of Atmega32 AVR microchips are available:
TinyAVR:
These Microcontrollers come in compact sizes, have limited memory, and are only appropriate for straightforward applications.
MegaAVR:
These microcontrollers are well-known for having up to 256 KB of memory, a maximum number of peripherals, and being employed in applications that are somewhat too advanced.
XmegaAVR:
is widely utilized for complicated applications where high-speed & big program memory is required.
Exploring the Features and Capabilities of AVR Microcontroller
Features
The features of the AVR Microcontroller are discussed below:
Powerful Components:
Powerful, adaptable components with lots of flexibility and
functionalities are AVR Microprocessors. To interact with other devices, they
offer a variety of timers, counters, and communications networks including I2C,
SPI, USART, etc. Additionally, AVRs include a variety of interrupts for
processing various events in real time. Atmega32 AVR Microprocessors also frequently
contain 8-bit or 16-bit cores, which allow them to easily tackle a range of tasks.
High-Quality Embedded Program Memory:
High-quality embedded Flash program memory supports ISP and IAP and can be written to and erased frequently, making it simple to create, produce, and update products. Long-lasting EEPROM can store important information for a long time and prevent power loss. High-capacity RAM in CPUs enables the development of system software in high-level programming languages.
High Speed:
High speed, low power usage, and the ability to use the SLEEP function (power saving when sleeping). AVR based on the Harvard structure concept, each instruction may be executed at 50ns/ 20MHz, while energy consumption is between l2.5mA.
In other words, there are different memories and bridges for program storage and data, and the following instruction is pre-removed from the program memory before a procedure is executed.
This enables the execution of instructions during each clock cycle. Moreover, it also minimizes the overall 8-bit computer software anti-interference implementation and hardware utilization operates at a wide range of voltages (2.7V–5V), and has powerful anti-jamming capabilities.
Flexibility:
Each I/O line on the AVR single-chip computer features a controllable twist resistor. The parallel I/O port’s input and output properties are comparable to the PIC’s HI/LOW output and three-state high impedance H1-Z input.
Additionally, It can also be configured to behave similarly to the 8051 series’ inbuilt resistive element as an input. It may be configured as an input or output or initially configured as a high-resistance input, to ensure the flexibility, strength, and maximum utilization of I/O resources. AVR’s I/ O may correctly depict the input/output of I/O.
Watchdog Timers:
For industrial devices, a single output with a high current of lO=20 mA to 40 mA can operate an SSR or a relay.
Moreover, the use of the integrated watchdog timer helps the device be more resistant to interference and helps prevent malfunctioning programs.
Extremely Practical and Efficient Instruction:
The existence of 32 general working registers, which correspond to 32 accumulators in 8051 single-chip computers, addresses the data processing limitations of the single accumulator.
Conclusion
In short, AVR Microprocessors are capable and flexible components that can be used in a wide range of applications. They provide multiple features and peripherals which make them well-suited for embedded applications. Additionally, their programmability and boot-loading make them easy to customize and update as needed. This makes them a great choice for creating custom applications using an Atmega32 AVR Microcontroller.
Additionally, If you want to see Our Latest Posts and Recent Project then Visit This Link How to Blink LED Using Atmel Studio and ATMEGA32 Microcontroller
Furthermore, If you want to learn The complete Assembly and C language for Atmega32 Avr Microcontroller? so, visit This Youtube Channel.
Microcontrollers of the ATmega32 brand are produced by Atmel. It is utilized in a wide range of embedded applications, including those in automotive, electronic goods, manufacturing control and automation, and medical devices, among others. It has 1K EEPROM to store non-volatile data, 32KB Flash memory to store program instructions, and 2KB RAM to store data.
Applications for AVR microcontrollers in embedded systems are numerous. They are highly common in embedded applications used by artists and students, and their incorporation in many of the open hardware programmable devices from the Arduino line has helped to make them more well-known.
